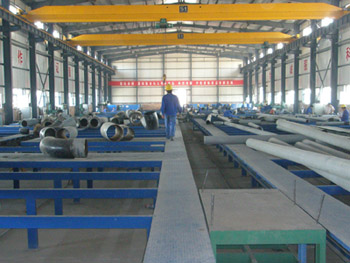

Double-purpose Piping Prefabrication Production Line
Double-purpose Piping Prefabrication Production Line
Double-purpose Piping Prefabrication Production Line
Double-purpose Piping Prefabrication Production Line
Model:DPPPL-24A
Performance
1. Double-purpose: Excellent(Be Transportable Piping Prefabrication Production Line if All Equipment is in Containers and Fixed-type Piping Prefabrication Production Line if All Equipment is in Workshop)
2. Production Efficiency: Excellent (in Workshop) / High (in Container)
3. Equipment Mobility: Good
5. Application Range: Piping Projects are Widely Distributed from coast to coast but the Total Amount of Work are large.
Technical Parameter:
1. Production Capacity: 20-120 thousand Diameter-Inch/month
2. Pipe diameter: DN50-600(φ60-610)
3. Pipe thickness: 3-80MM
4. Conveying Speed: 2-20M/Min
5. Beveling Speed: 5Min / Two Bevels(DN200 SCH40)

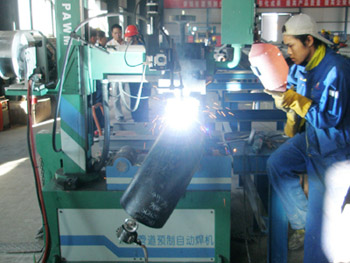

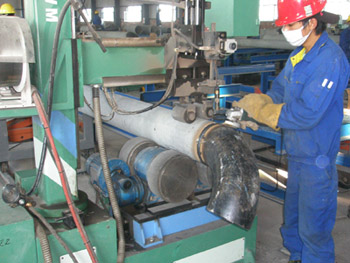

6. Automatic Welding Rate:≥60%
7. Prefabrication Ratio: 50%~80%
8. Design Software: PDSOFT 3DPiping
9. Management Software: PDSOFT PPMIS
Performance
1. Double-purpose: Excellent(Be Transportable Piping Prefabrication Production Line if All Equipment is in Containers and Fixed-type Piping Prefabrication Production Line if All Equipment is in Workshop)
2. Production Efficiency: Excellent (in Workshop) / High (in Container)
3. Equipment Mobility: Good
5. Application Range: Piping Projects are Widely Distributed from coast to coast but the Total Amount of Work are large.
Technical Parameter:
1. Production Capacity: 20-120 thousand Diameter-Inch/month
2. Pipe diameter: DN50-600(φ60-610)
3. Pipe thickness: 3-80MM
4. Conveying Speed: 2-20M/Min
5. Beveling Speed: 5Min / Two Bevels(DN200 SCH40)
6. Automatic Welding Rate:≥60%
7. Prefabrication Ratio: 50%~80%
8. Design Software: PDSOFT 3DPiping
9. Management Software: PDSOFT PPMIS
