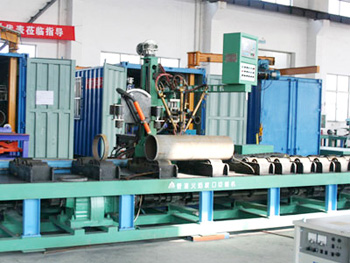

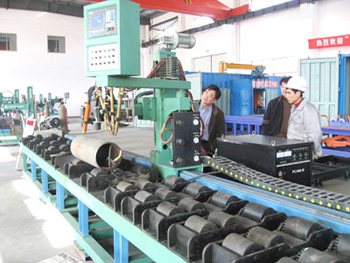

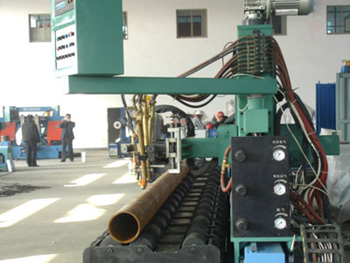

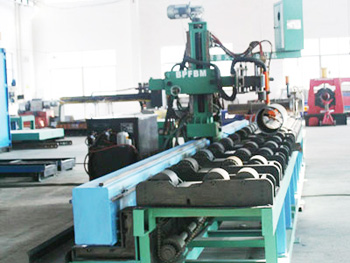

Model:BPFBM-24A1/A2
Performance Characteristics
Performance Characteristics
1.On-line Performance: Good (designed for flow process)
2.Beveling Capacity: ≤5Min/ pipeline (DN200 SCH40) (A1) or ≤6Min/ two pipelines (DN200 SCH40) (A2)
3. Cutting Capacity: one A1 Beveling per time or two A2 Beveling per time
4. Beveling: high quality
5. Price: between Pipe Cutting and Beveling Machine-Fixed (Radial Direction) and Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: DN100-600(φ114-610)
2. Pipe thickness: 3-40
3. Pipe materials: carbon steel, alloy steel and cryogenic steel.
4. Type Of Bevel:V
5. Cutting Length: 6350MM
6. Cutting Direction: radial direction
7. Rolling Machine:
Structure: Double-roller with fixed distance
Rolling Machine Length:7000MM
Driving System: servo motor with precision reducer
Rotation Speed:0-2.5M/Min(stepless speed regulator of frequency conversion)
Rolling Machine Material:45#,surface with flange
Rotation Accuracy:<2.0MM
8. Trolley System:
Trolley Trip:6350MM , vertical move
Cutting Torch Trip:700MM(Ascending-descending)、300MM(In and Out)
Cutting Mode:Flame
Cutting Torch Angle:±35°
Cutting Torch Quantity: one piece(A1) or three pieces(A2)
Tracking System:high precision
Angle Error:<2°
Length- determination System:<2.0MM
9. Clamping System: hydraulic cylinder, manual silk pole
10. Control System: SH-2000H NC Flame Cutting System
11.Control System of a Definite Length: Included in control system
12.Logistics System:Logistic System with elevator , driven by motor or electric
