Pipe Bevel Machining Workstation(B-type)
Pipe Bevel Machining Workstation(B-type)
Pipe Bevel Machining Workstation(B-type)
Pipe Bevel Machining Workstation(B-type)
Pipe Bevel Machining Workstation(B-type)

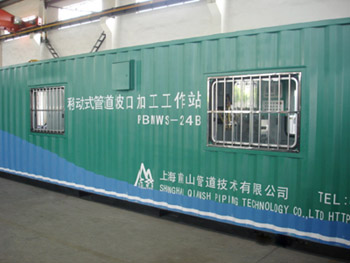

Model: PBMWS-24B
Performance Characteristics

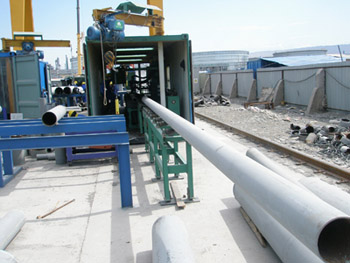

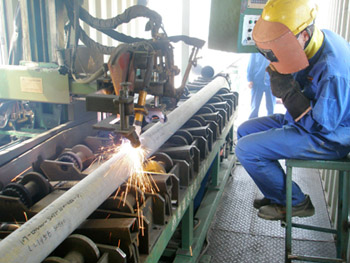

1. Structure: 9 meters container with special technology, Plasma Pipeline Cutting & Beveling Equipment (Rolling Disc Cooling Bed), logistics conveyer system of Pipeline Cutting & Beveling Equipment, 2 cantilever cranes
2. Production Capacity: ≤3 Min / pipeline (DN200 SCH40)
3. Mobility: Excellent (without limitation of radiation radius by using container as carrier)
4. Beveling Machine Quality: Good
5. Application: Used in groove preparation of common pipelines with Large Diameter
Technical parameter:
1. Pipe diameter: DN100-600(φ114-610)
2. Pipe thickness: 1-18MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Cutting Length: 6350 MM

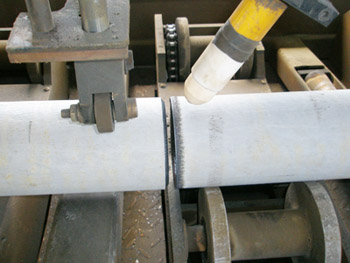

5. Type of Bevel : V
6. Limit Weight Of Mine Hoist: 1 ton
7. Control System: SH-2000H NC Cutting System
8. Logistics System: logistics conveyer system of beveling machine with hand
9. Control System of Definite Length: Controlled by NC Cutting System
Performance Characteristics
1. Structure: 9 meters container with special technology, Plasma Pipeline Cutting & Beveling Equipment (Rolling Disc Cooling Bed), logistics conveyer system of Pipeline Cutting & Beveling Equipment, 2 cantilever cranes
2. Production Capacity: ≤3 Min / pipeline (DN200 SCH40)
3. Mobility: Excellent (without limitation of radiation radius by using container as carrier)
4. Beveling Machine Quality: Good
5. Application: Used in groove preparation of common pipelines with Large Diameter
Technical parameter:
1. Pipe diameter: DN100-600(φ114-610)
2. Pipe thickness: 1-18MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Cutting Length: 6350 MM
5. Type of Bevel : V
6. Limit Weight Of Mine Hoist: 1 ton
7. Control System: SH-2000H NC Cutting System
8. Logistics System: logistics conveyer system of beveling machine with hand
9. Control System of Definite Length: Controlled by NC Cutting System
