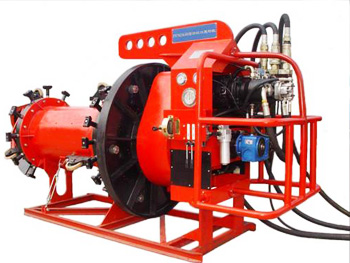

Pipeline Internal-expanding End Beveling Machine

Pipeline Internal-expanding End Beveling Machine

Pipeline Internal-expanding End Beveling Machine

Model: MPEBM-14B/20B/24B/30B/36B/40B/46B/52B/60B
Technical Parameters
1.Applicable pipe diameter：
Φ203-355/Φ406-508/Φ508-610/Φ610-762/Φ762-914/Φ914-1016/Φ1016-1168/Φ1168-1320/Φ1320-1524 2.Bevel shape: Ｘ, Ｖ and double V
3.Overall Dimension：
φ1500*1000*950/φ2150*1100*1000/φ2300*1100*1000/φ2450*1200*1300/φ2680*1250*1500/φ3200*1300*1700/ φ3200*1600*1800/φ3400*1750*1900/φ3400*1800*2050
4.Total Weight：490Kg/950Kg/1250Kg/1750Kg/2100Kg/2380Kg/2800Kg/3400Kg/4000Kg
