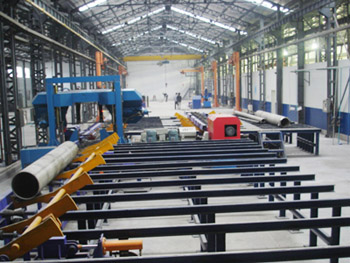

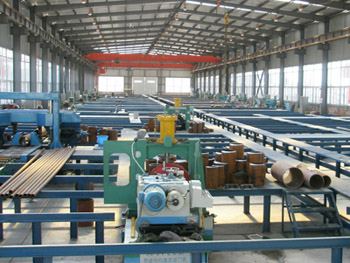

Pipe Bevel Machining Flow Line(C-type)
Pipe Bevel Machining Flow Line(C-type)

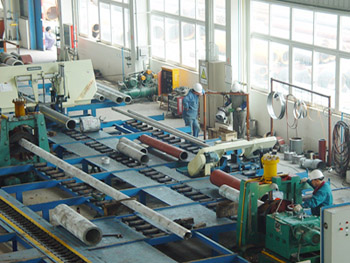

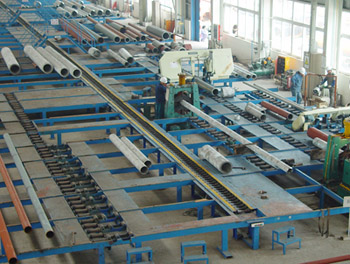

Pipe Bevel Machining Flow Line(B-type)
Pipe Bevel Machining Flow Line(B-type)
Pipe Bevel Machining Flow Line(B-type)
Model:PBMFL-24C
Performance
1. Basic Configuration: Two Highly-efficient Pipe Cutting Band Saw Machine, Two Fixed-type Radial Pipe End Beveling Machine or Fixed-type Axial Pipe End Beveling Machine, Two Sets of Logistics Transportation System, Two Sets of Pipe Cutting Length-Measuring System and One Set of Steel Structure Frame.
2. Production Efficiency: 2Min / One Bevel when Cutting + 5Min / One Bevel when Beveling ( DN200 SCH40 Carbon Steel)
3. Equipment Mobility: Low
4. Beveling Quality: Excellent
5.Application Range: Used in Piping prefabrication Production Line
Technical Parameter:
1. Production Capacity: 300-500 Diameter-Inch/Day
2. Pipe Diameter: DN50-600(φ60-610)
3. Pipe Thickness: 3-100MM
4. Pipe Materials: Carbon Steel, Alloy Steel, Stainless Steel and Low Temperature Steel
5. Cutting Length: No limitation
6. Bevel Type: Ｕ、Ｘ、Ｖ、Double Ｖ
7. Control System: PLC Control with Touch Screen
8. Logistics System: Pipe logistics Transportation System for Band Saw Machine and Pipe logistics Transportation System for End Beveling Machine with Elevating Screw, Driving by Variable Frequency Motor
9. Length-Measuring System: Mechanical Type, Functioning together with Logistics System
Performance
1. Basic Configuration: Two Highly-efficient Pipe Cutting Band Saw Machine, Two Fixed-type Radial Pipe End Beveling Machine or Fixed-type Axial Pipe End Beveling Machine, Two Sets of Logistics Transportation System, Two Sets of Pipe Cutting Length-Measuring System and One Set of Steel Structure Frame.
2. Production Efficiency: 2Min / One Bevel when Cutting + 5Min / One Bevel when Beveling ( DN200 SCH40 Carbon Steel)
3. Equipment Mobility: Low
4. Beveling Quality: Excellent
5.Application Range: Used in Piping prefabrication Production Line
Technical Parameter:
1. Production Capacity: 300-500 Diameter-Inch/Day
2. Pipe Diameter: DN50-600(φ60-610)
3. Pipe Thickness: 3-100MM
4. Pipe Materials: Carbon Steel, Alloy Steel, Stainless Steel and Low Temperature Steel
5. Cutting Length: No limitation
6. Bevel Type: Ｕ、Ｘ、Ｖ、Double Ｖ
7. Control System: PLC Control with Touch Screen
8. Logistics System: Pipe logistics Transportation System for Band Saw Machine and Pipe logistics Transportation System for End Beveling Machine with Elevating Screw, Driving by Variable Frequency Motor
9. Length-Measuring System: Mechanical Type, Functioning together with Logistics System
