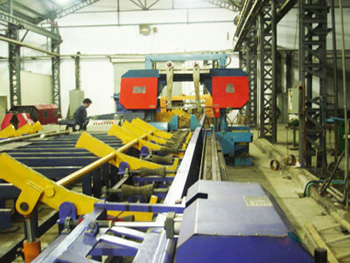

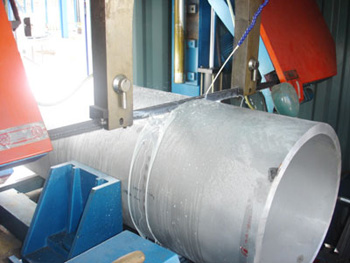

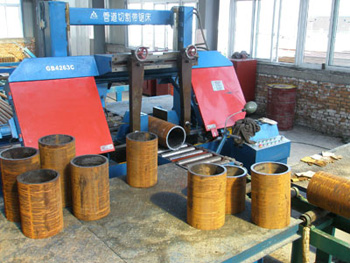

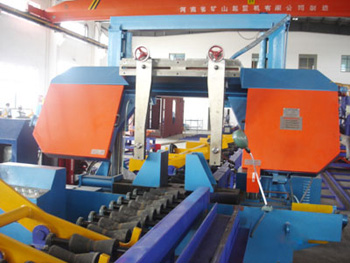

Pipe Cutting Band Saw Machine

Pipe Cutting Band Saw Machine

Pipe Cutting Band Saw Machine

Pipe Cutting Band Saw Machine

Pipe Cutting Band Saw Machine

Model: PCBSM-24A1/A2;PCBSM-16A1/A2
Performance Characteristics
1. On-line Performance: Excellent (designed for flow process)
2. Cutting Capacity:≤2Min / pipeline(DN200 SCH40) ;≤3Min /pipeline(DN200 SCH40)
3. Kerf Quality:Good
4. Price: cheap
Technical parameter
1. Pipe diameter: DN50-600(φ60-610);DN50-400(φ60-426)
2. Pipe Structure: horizontal type with double column
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Feed Speed: stepless speed regulation
5. Saw Belt Speed: 27、52、78 m/min/ stepless speed regulation of frequency conversion;18、42、68 m/min
6. Saw Belt Size: 6700X*41*1.3/6550X*41*1.3;4570X*34*1.1
7. Control System of Definite Length: Control System of Definite Length combined with logistics conveyer system
8. Logistics System: driven by motor with frequency converter
