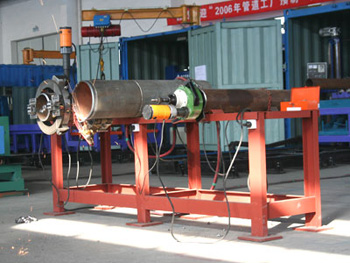

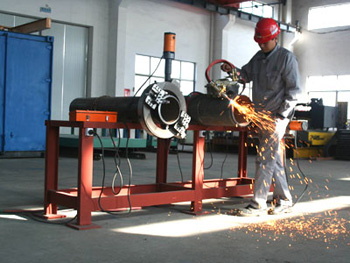

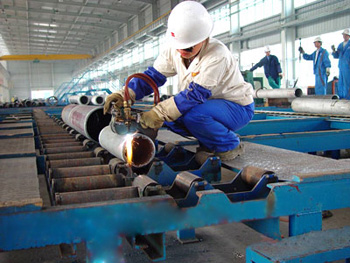

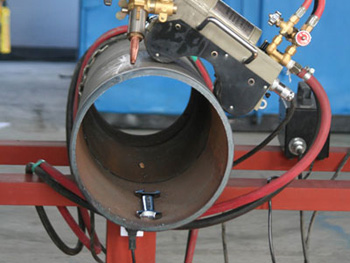

Magnetic Pipe Flame Cutting & Beveling Machine

Magnetic Pipe Flame Cutting & Beveling Machine

Magnetic Pipe Flame Cutting & Beveling Machine

Magnetic Pipe Flame Cutting & Beveling Machine

Magnetic Pipe Flame Cutting & Beveling Machine

Model:MPFBM-24A
Performance Characteristics
1.On-line Performance:Good (designed for unflow process)
2.Beveling Capacity: ≤ 5 Min/ pipeline (DN200, common pipeline)
3. Cutting Capacity: one Beveling per time
4. Beveling: high quality
5.Application: used in horizontal cutting, vertical cutting, upcast cutting
6. Price: Low
Technical parameter:
1. Pipe diameter: ≥DN100(φ114)
2. Pipe thickness: 5-50
3. Pipe materials: carbon steel, alloy steel and cryogenic steel.
4. Type Of Bevel:Ｖ
5. Cutting Direction: radial Direction
6. Cutting Speed: 50-750 mm/min
7. Magnetic Force: ≥50kg
8. Cutting precision: 0.5mm(Ф114-426mm)
