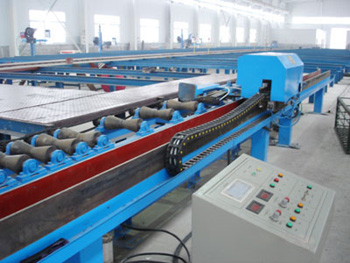

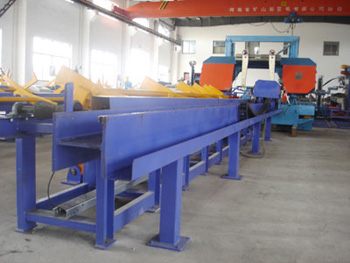

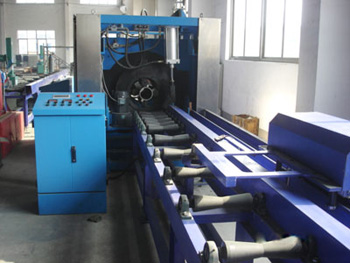

Mechanical Type Pipe Cutting Length-Measuring System

Mechanical Type Pipe Cutting Length-Measuring System

Mechanical Type Pipe Cutting Length-Measuring System

Mechanical Type Pipe Cutting Length-Measuring System

Mechanical Type Pipe Cutting Length-Measuring System

Model: PCMLS-24A
Performance Characteristics
1. Used with Pipe Cutting and Beveling Machine-Fixed or band saw
2. High precision and flexible
Technical parameter
1. Pipe diameter: DN50-600(φ60-610)
2. Line Length: 7M (or according your requirement)
3.Line Height: 800MM
4. Moving Speed: 0.5-14m/min
5. Cut-lengths: 6M (or according your requirement)
6. Definite Length Error: ≤2MM
7. Anir pressure: 0.6Mpa
8. Definite Length Mode: By machine
9. Control System: PLC Control with touch screen
