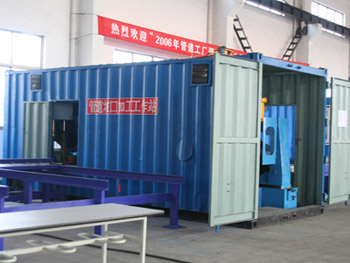

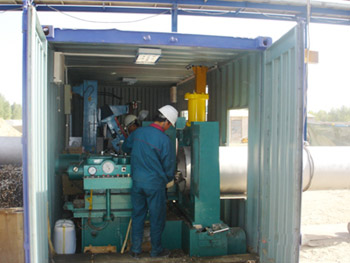

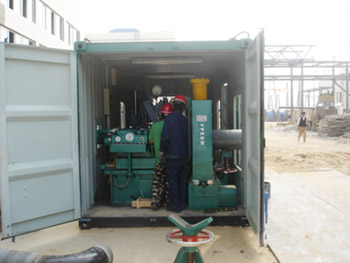

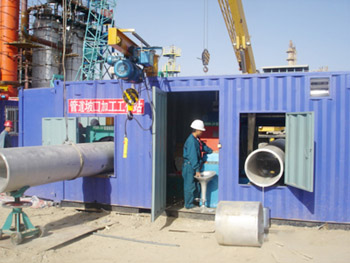

Pipe Bevel Machining Workstation(C-type)


Pipe Bevel Machining Workstation(C-type)

Pipe Bevel Machining Workstation(C-type)

Pipe Bevel Machining Workstation(C-type)

Pipe Bevel Machining Workstation(C-type)
Model: PBMWS-24C
Performance Characteristics
1. Structure: 6 meters container with special technology, cutting band saw machine, beveling machine (radial groove face of pipe), cantilever crane
2. Speed: Cutting Speed: ≤2 Min / pipeline, Beveling Speed: ≤5 Min / pipeline (DN200 SCH40)
3. Mobility: Excellent (without limitation of radiation radius by using container as carrier)
4. Beveling Machine Quality: Excellent
5. Application: Used in groove preparation of thick pipelines
Technical parameter:
1. Pipe diameter: DN50-600(φ60-610)
2. Pipe thickness: 3-100MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Cutting Length: no limitation
5. Type of Bevel : U、X、V、double V
6. Limit Weight Of Mine Hoist: 1 ton
7. Logistics System: two trolleys placed in two sides of band saw machine. Logistics conveyer system of band saw machine with motor drive and frequency control
8. Control System of Definite Length : Control System of Definite Length combined with logistics conveyer system
