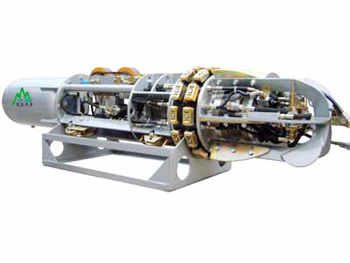

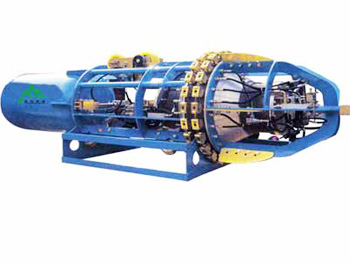

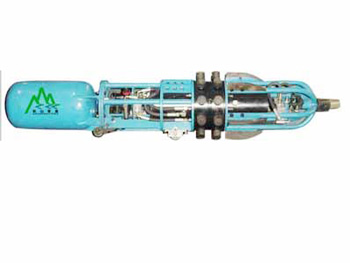

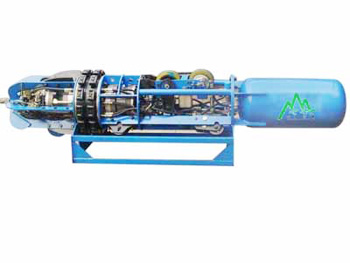

Piping Internal Pneumatic Pipe Line-Up Clamp


Piping Internal Pneumatic Pipe Line-Up Clamp

Piping Internal Pneumatic Pipe Line-Up Clamp

Piping Internal Pneumatic Pipe Line-Up Clamp

Piping Internal Pneumatic Pipe Line-Up Clamp
Model:PPLUC-18A/22A/26A/32A/36A/40A/44A/48A/52A/56A
Technical Parameters
1. Applicable pipe diameter:
φ406-457/φ508-559/φ610-660/φ711-813/φ813-914/φ914-1016/φ1067-1118/φ1168-1219/φ1219-1320/φ1320-1420
2. Press amount:10*2/10*2/12*2/12*2/12*2/18*2/12*2/24*2/24*2/30*2/
3. Support force: 8.5T/ 150T/ 183T/ 270T/ 270T/ 450T/270T/ 650T/ 650T/650T/
4.Driving system:Driving by motor, single side single wheel(18A-36A)/ single side two wheels(40A-56A)
5.Braking system:Single side single brake(18A-36A)/ Three sides double brakes(40A-56A)
6.Overall
dimension:φ360*1800/φ470*2200/φ550*2700/φ650*2900/φ750*2900/φ815*3100/φ1000*3700/φ1100*4100/φ1170*4200/
φ1270*4200
7.Total weight:290Kg/430Kg/550Kg/700Kg/860Kg/1100Kg/1500Kg/1800Kg/2100Kg/2200Kg/
