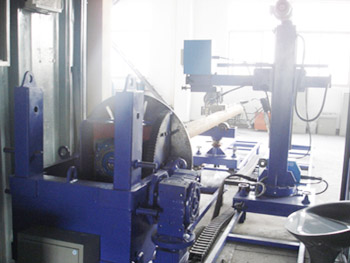

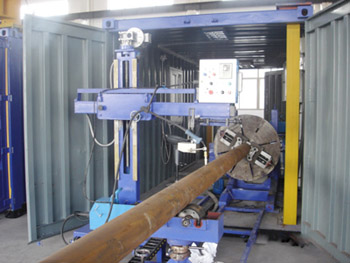

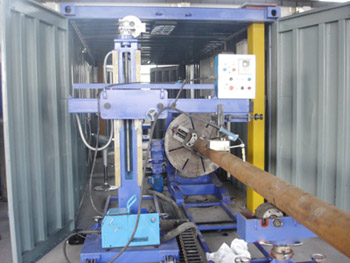

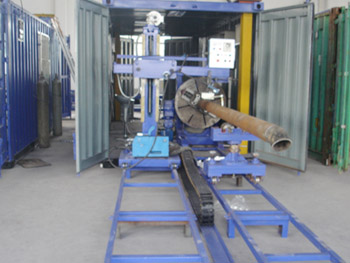

Piping Automatic Welding Workstation(B-type)

Piping Automatic Welding Workstation(B-type)

Piping Automatic Welding Workstation(B-type)

Piping Automatic Welding Workstation(B-type)

Piping Automatic Welding Workstation(B-type)

Model:PAWWS-24B
Performance Characteristics
1.Structure: 6 meters container with special technology,2 Pipeline Prefabricated auto-Welding Machines, 2 Trolleys which is corollary equipment of auto Welding Machine, 2 cantilever cranes, 2 CO2 arc Welding Machines.
2. Production Capacity: 400-600 inch per day (DN200 SCH40)
3. Mobility: Excellent (without limitation of radiation radius by using container as carrier)
4. Application: Used in the project with lots of thick pipelines and a little of common ones
Technical parameter:
1. Pipe diameter: DN50-600(φ60-610)
2. Pipe thickness: 3-60MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4.Welding: tube-tube, pipe-pipe, tube-elbow, tube-flange, flange-flange, flange- elbow
5. Auto-welding cover rate: ≥60%
6. Pipeline Prefabricated Depth: 50%~80%
7. Design Software: PDSOFT 3DPiping
8. Management Software: PDSOFT PPMIS
