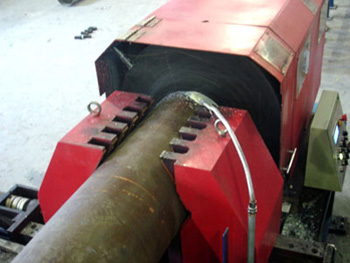

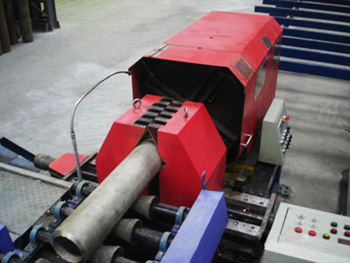

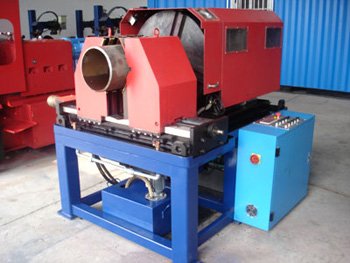

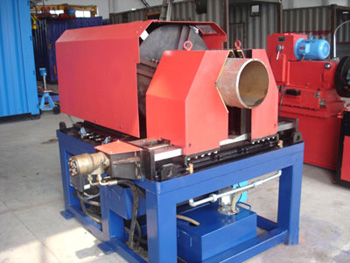

Fixed-type Axial Pipe End Beveling Machine

Fixed-type Axial Pipe End Beveling Machine

Fixed-type Axial Pipe End Beveling Machine

Fixed-type Axial Pipe End Beveling Machine

Fixed-type Axial Pipe End Beveling Machine

Model:FPEBM-24B; FPEBM-16B
Performance Characteristics
1.On-line Performance:Good (designed for flow process)
2.Beveling Capacity: ≤2 Min/ pipeline (DN200 SCH40)
3. Cutting Capacity: one Beveling per time(cutting on Saw first)
4. Beveling: high quality
6. Mobility: Low
7. Application: used in the cutting of thick pipelines(large scale) with Ｖ beveling
8. Price: between Pipe Cutting and Beveling Machine-Fixed (Radial Direction) and Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: DN50-600(φ60-610);DN50-400(φ60-426)
2. Pipe thickness: single pole and single pass welding: 12mm, others have no limitation
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel: Ｕ、Ｖ、DoubleＶ
5. Cutting Direction: axial direction
6. Clamping System: hydraulic cylinder silk pole
7. Control System: PLC cnc system
8.Control System of Definite Length: NO
9. Auto Adjusting Core System: auto lifting device
10.Logistics System:driven by motor with frequency converter
11.Cutting Displacement: 150 mm
12. Spindle Speed: frequency conversion Stepless Speed
13.Cooling System: No
14. Hydraulic System: inner set
