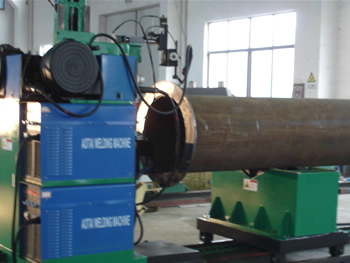

Model: SFAWM-32A1/A2
Performance Characteristics
1. On-line Performance: Excellent (designed for unflow process)
2. Application: Used in welding in lateral horn of plate flange
3. Welding Capacity: Excellent (250-350 inch/day, which is over 4 times of manual welding)
4. Operability: Good (easy to operate even if you are a fresher)
5. Surface Forming: Excellent (the welding gun will always be positioned in optimum position)
6. Welding Qualification Ratio: ≥98%
7. Driving Reliability: Good
8. Price: Higher than the Automatic Pipe Wall Welding Machines
Technical parameter
1. Pipe diameter: DN100-800(φ114-810)
2. Pipe thickness: 3-60MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Welding: tube-flange
5. Driving System: driven by Welding Roller Bed with A2
6. Compression System: no Compression System

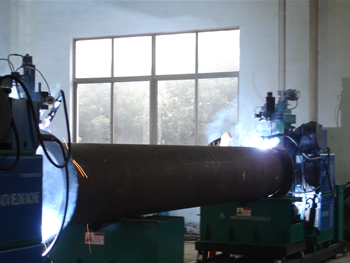

7. Bracket System: Two Welding Roller Beds which may be adjusted along the track according to the length of the pipeline.
8. Counterweight System: no Counterweight
9. Speed-regulation Mode:Variable-Frequency Stepless Speed Control System
10. Adjustment Mode: electric cross regulator
11. Control System: products of proprietary technologies owned by our company, PLC control
12. Welding Mode: CO2 gas shielded arc welding
13. Welding Power: OEM (or as per customers’ demands)
14. Swing System: products of proprietary technologies owned by our company, stepper motor drive with digital display pendulum width regulator
15. Motor system: one motor with two welding guns (A1)/two motors with four welding guns
